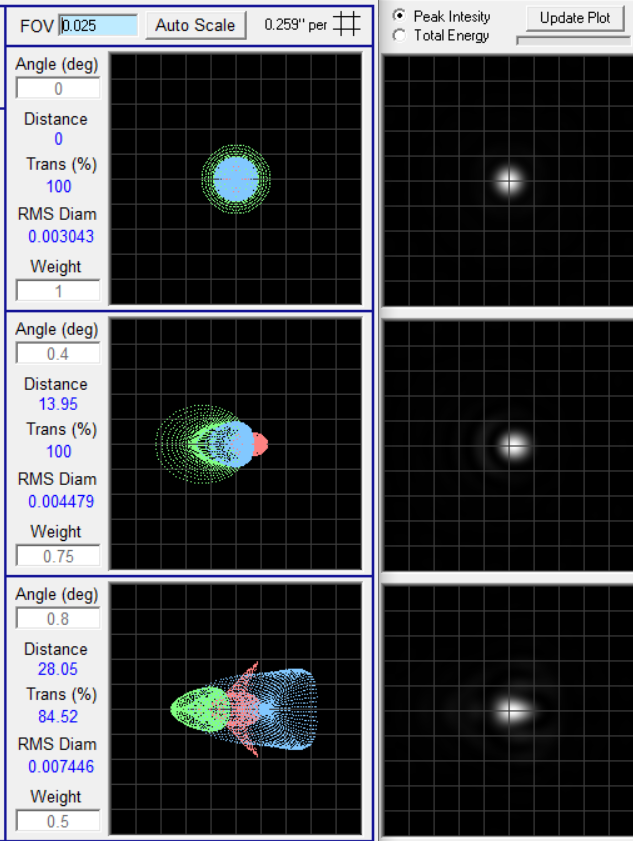

Breakthrough HNA optics for wide-field visual observation and astrophotography. A lightweight sandwich
hyperbolic primary mirror paired with a matching custom corrector delivers superb on-axis image quality with
a Strehl ratio greater than 0.99 — far surpassing a parabolic mirror with a Ross corrector. Available from
12" to 40" with 2-8 month delivery.
Stocked Optics:
12" f/4.3 Pyrex Glass Sandwich Mirror with 3.5" Corrector
14" f/4.2 Plate Glass Sandwich Mirror with 3.5" Corrector
All our stocked mirrors are the same high quality mirrors as our standard mirrors (1/10 or better in PV, about
1/50 in RMS, and 0.95 or better in Strehl ratio, with the 96% enhanced aluminum coating free of extra charge).
The secondary mirror is not included in the prices.
Optical Diameter, F/#
THK (mm)
WT (kg)
Reg. (US$)
Sales (US$)
Price with shipping
12" (304.8mm) f/4.3 Pyrex Glass Sandwich Mirror with 3.5" Corrector
~41
~5.8
$2,850
14" (355.6mm) f/4.2 Plate Glass Sandwich Mirror with 3.5" Corrector
~39
~7.8
$2,650
Diameter and f/#
Price (US$)
14" f/4.2
6,350
20" f/3.8
9,950
24" f/3.8
16,950

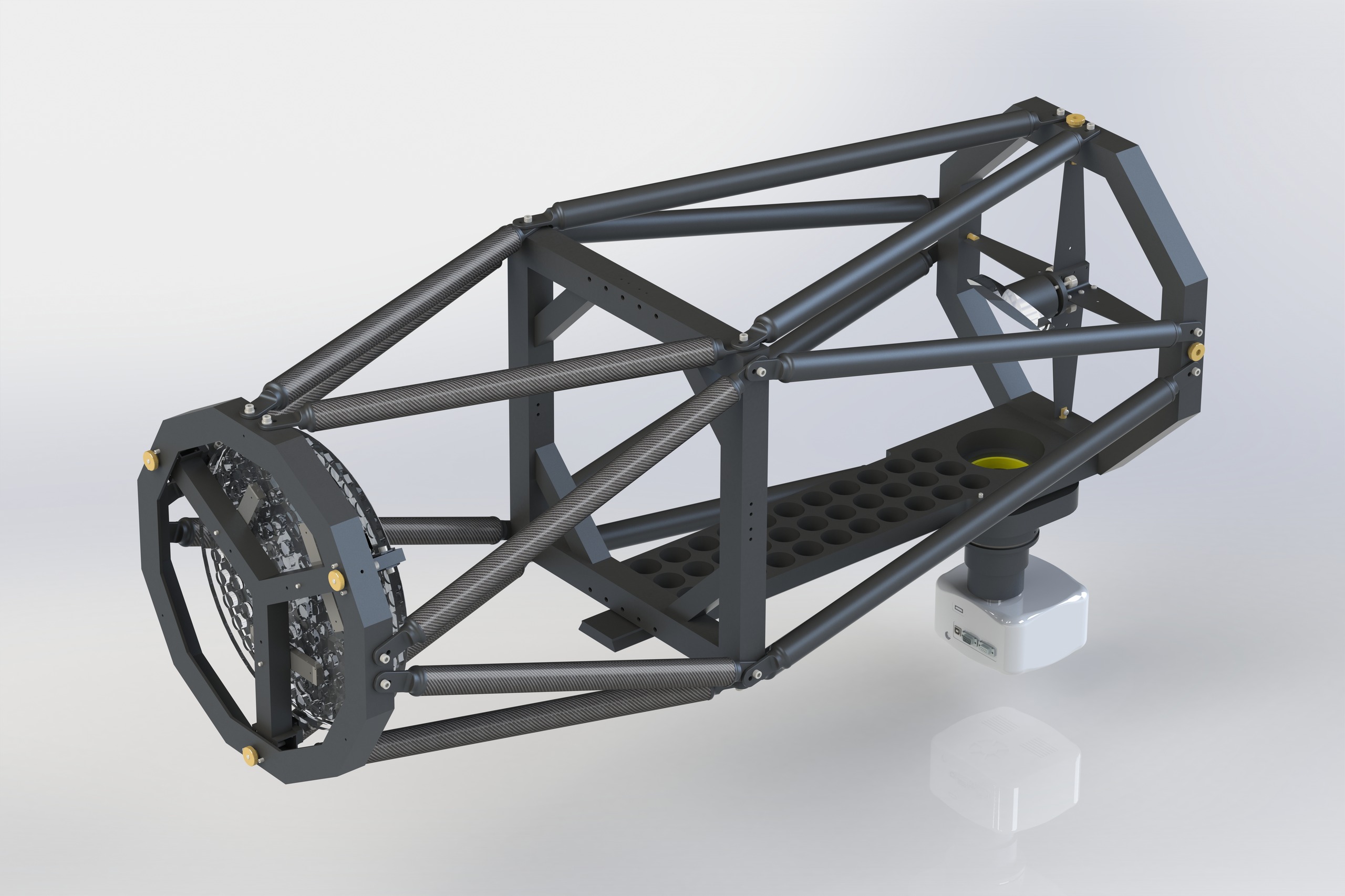

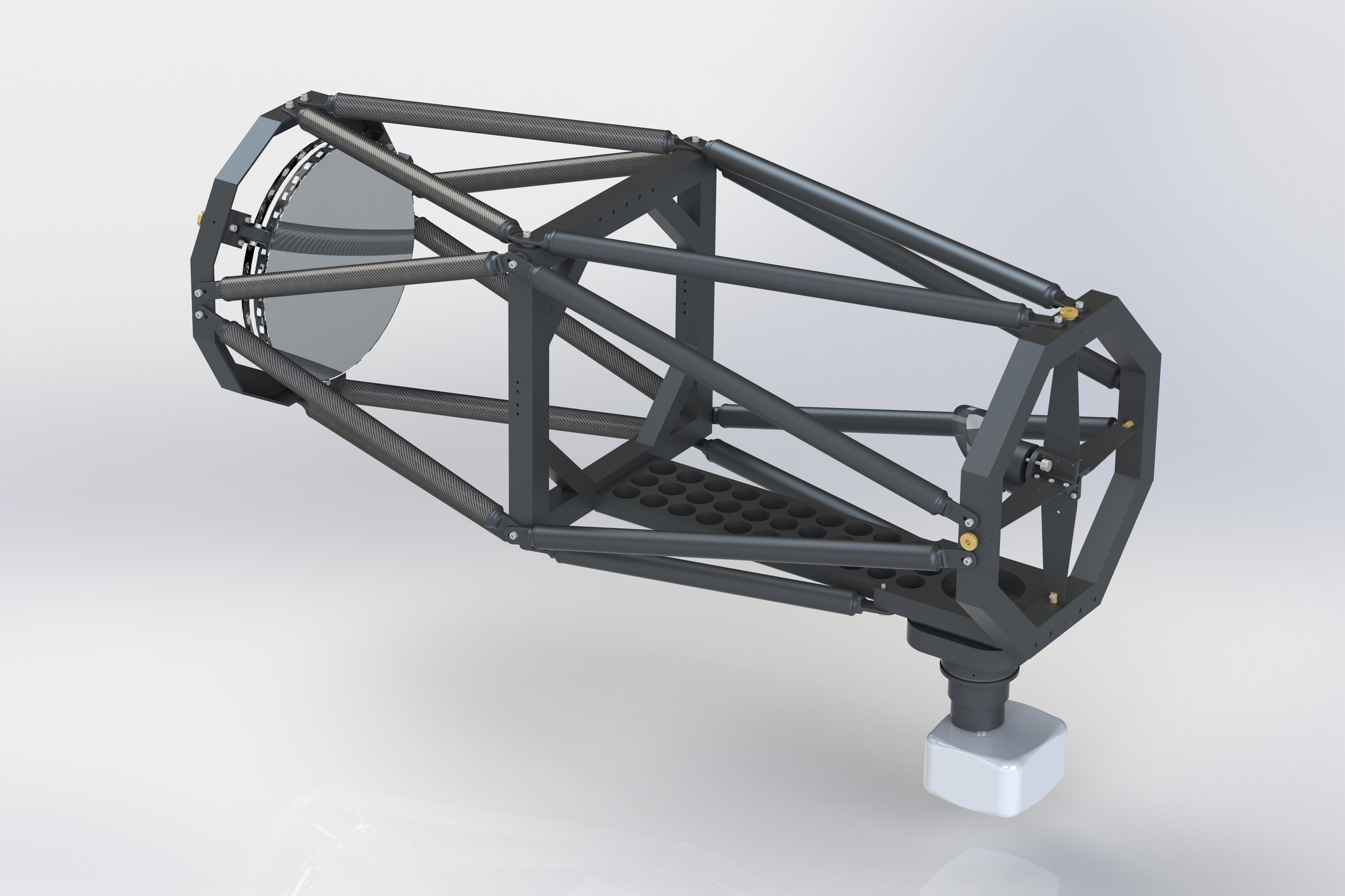

Optical Aperture
355.6mm
System Focal Ratio
4.2
Focal Length
1494mm
Field Of View
50mm
Obstruction Ratio
31%
Back Focus (from racked in focuser)
129mm
Focuser Diameter
3.5" Dual Speed Crayford
Weight
27.6 kg without the focuser
OTA Length
1320mm (without focuser installed)
Mirror Coatings
96% enhanced coated
Delivery Time
~60-90 Days
A 50% deposit secures the base system, with full payment for optional accessories at order time. The
remaining balance and shipping are paid before delivery (approximately 60 days after the deposit) via PayPal
invoice.
The 60-day delivery reflects production lead time and does not include shipping transit.
Please specify your requested options in your payment for the deposit.

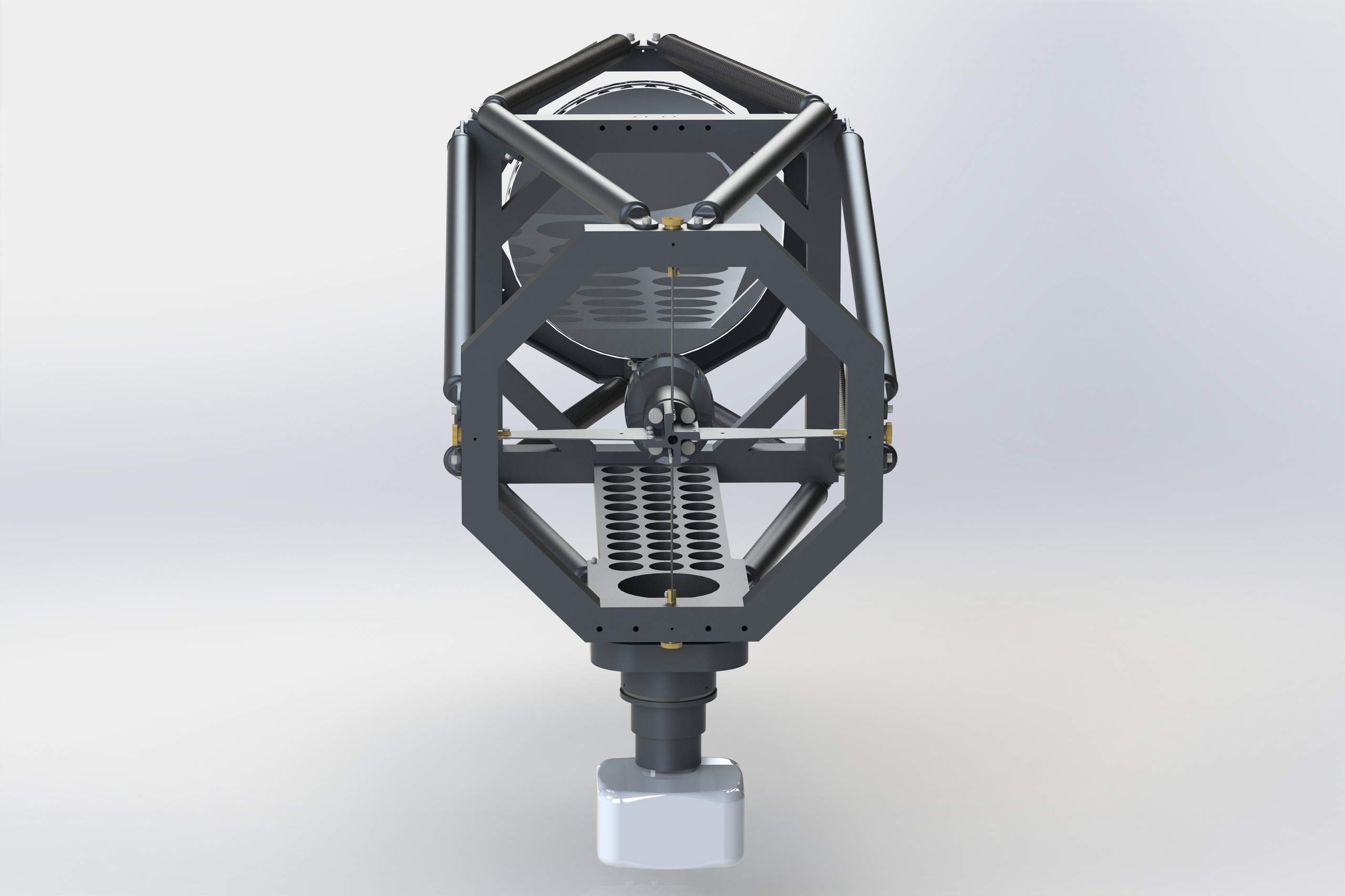

HNA 14 f/4.2 OTA: $6,350 USD
50% deposit: $3,175 USD
HNA14 will be shipped in 2 boxes: the main structure and the primary mirror.
Country
Surface (US$)
Air (US$)
US
266
495
US (Hawaii)
273
446
Austria
185
433
Australia
NA
478
Belgium
185
433
Brazil
NA
1590(*)
Canada
187
403
Chile
295
670
Denmark
167
419
France
204
430
Germany
190
423
Israel
180
420
Italy
216
420
Japan
170
290
Korea, South
NA
212
Mexico
NA
435
Netherlands
170
415
New Zealand
220
450
Norway
230
460
Philippines
138
200
Poland
217
540
Portugal
260
535
Romania
273
545
Russia
NA
725
Singapore
115
190
South Africa
195
510
Spain
182
465
Sweden
219
465
Switzerland
196
422
Taiwan
160
215
UK
195
422
* Shipped via Fedex, the exact cost depends on your specific address.

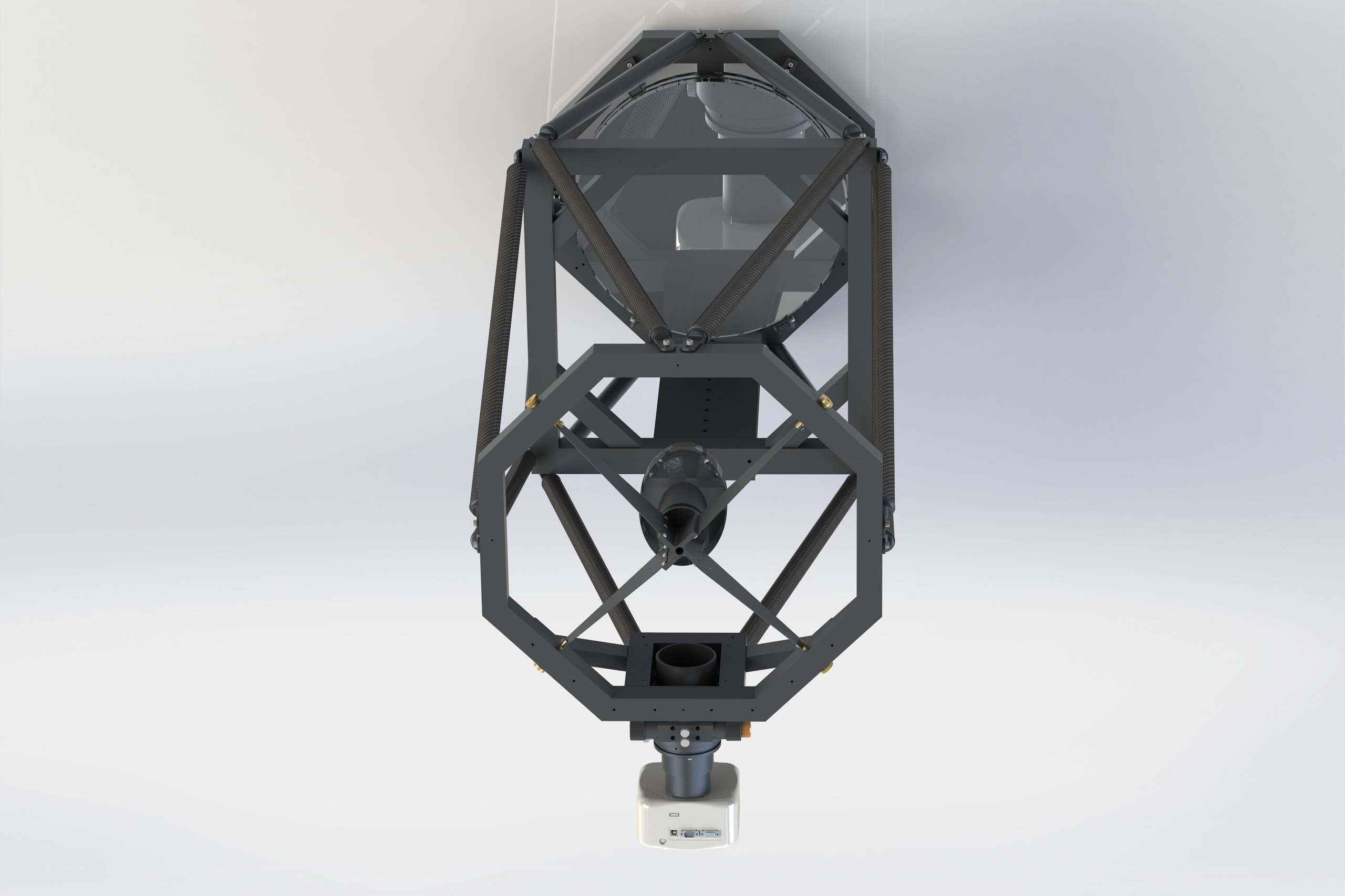

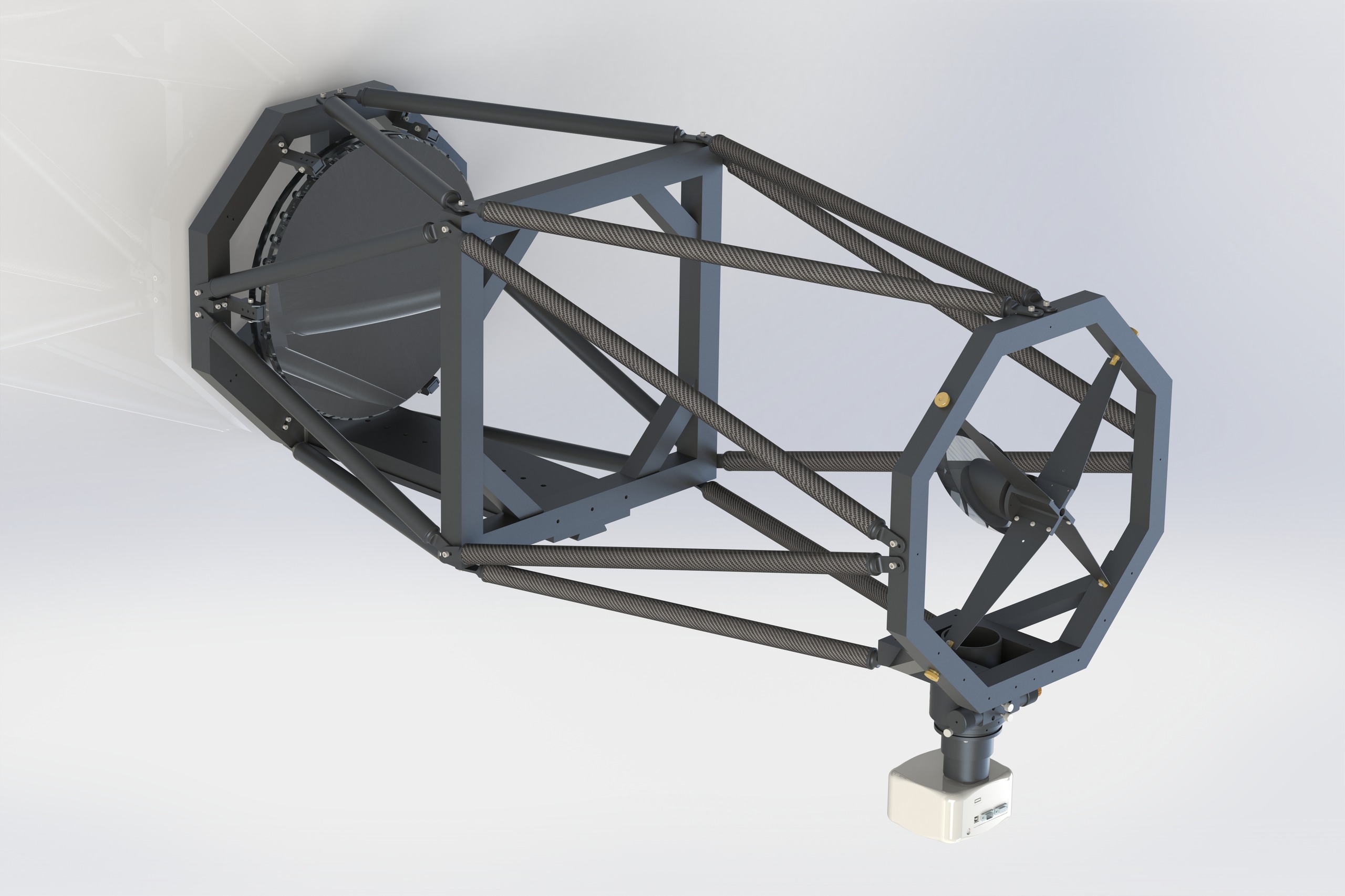

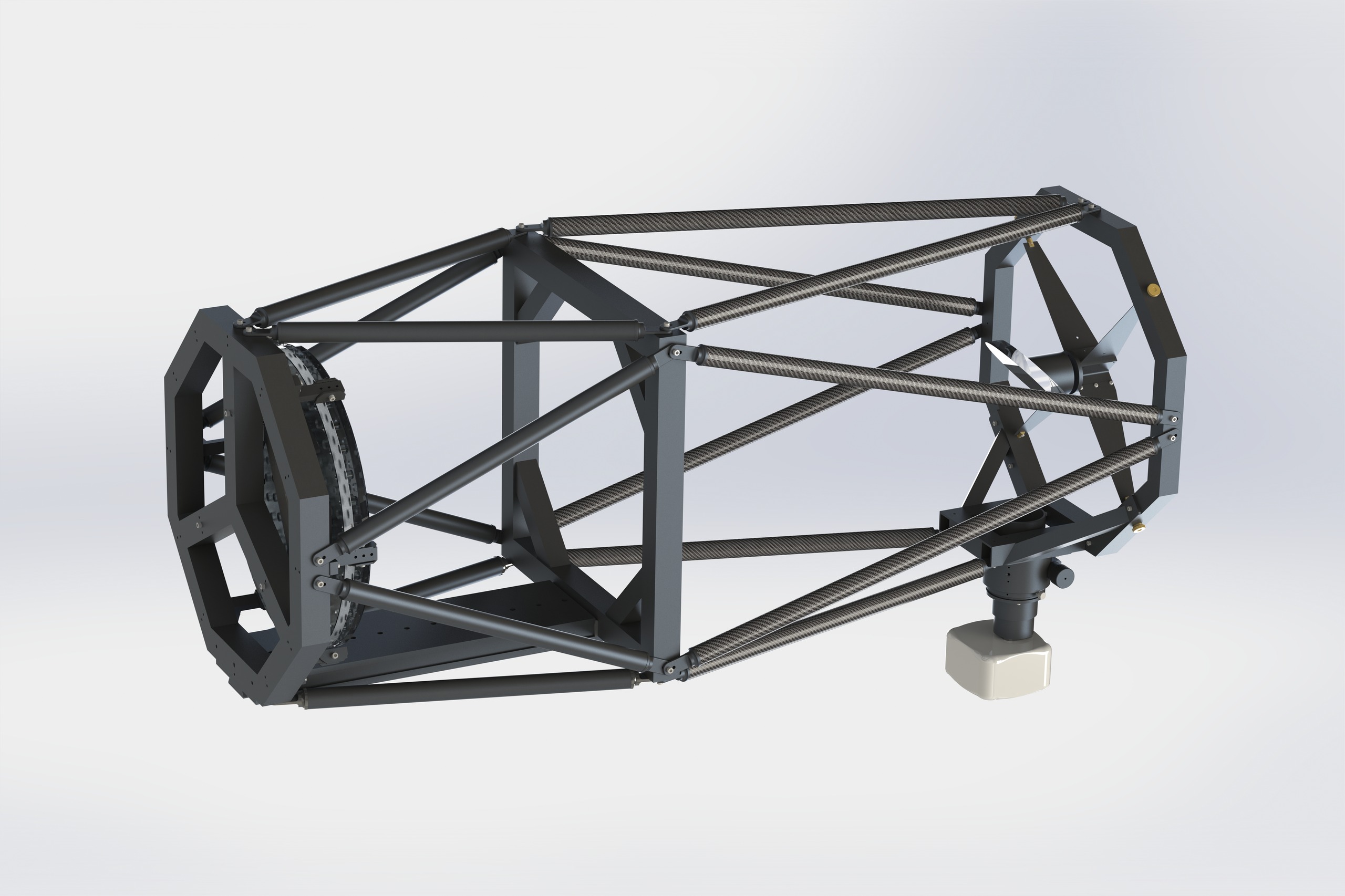

Optical Aperture
508mm
System Focal Ratio
3.8
Focal Length
1930mm
Field Of View
55mm
Obstruction Ratio
35%
Back Focus (from racked in focuser)
129mm
Focuser Diameter
3.5" Dual Speed Crayford
Weight
58 kg with the 3.5" focuser
OTA Length
1725mm (without focuser installed)
Mirror Coatings
96% enhanced coated
Delivery Time
~60-90 Days
HNA20 will be shipped in 3 boxes: the main structure in 2 boxes and the primary mirror in another box.
Country
Surface (US$)
Air (US$)
US
450
912
US (Hawaii)
450
815
Austria
329
694
Australia
NA
965
Belgium
500
840
Brazil
NA
2950(*)
Canada
300
815
Chile
950
1450
Denmark
255
750
France
320
775
Germany
290
760
Israel
NA
Contact Us(*)
Italy
670
910
Japan
305
490
Korea, South
NA
465
Lithuania
NA
1880
Mexico
NA
965
Netherlands
350
695
New Zealand
350
820
Norway
520
745
Portugal
526
865
Philippines
215
350
Poland
NA
Contact Us(*)
Romania
585
855
Russia
NA
1395
Singapore
205
376
South Africa
360
1030
Spain
NA
Contact Us(*)
Sweden
495
730
Switzerland
320
760
Taiwan
360
410
UK
390
790
* Shipped via Fedex, the exact cost depends on your specific address.
A 50% deposit secures the base system, with full payment for optional accessories at order time. The
remaining balance and shipping are paid before delivery (approximately 90 days after the deposit) via PayPal
invoice.
The 90-day delivery reflects production lead time and does not include shipping transit.
Please specify your requested options in your payment for the deposit.
