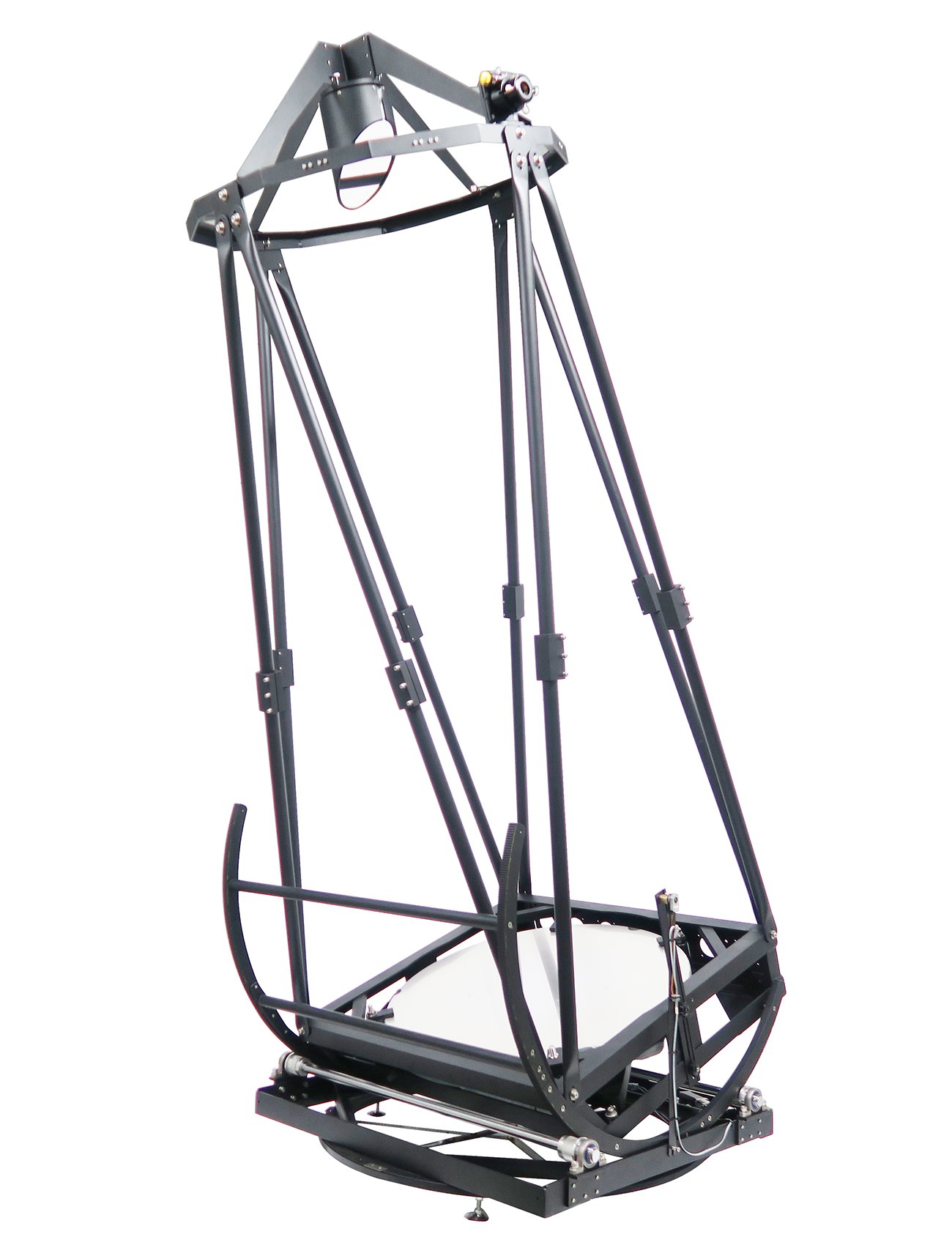

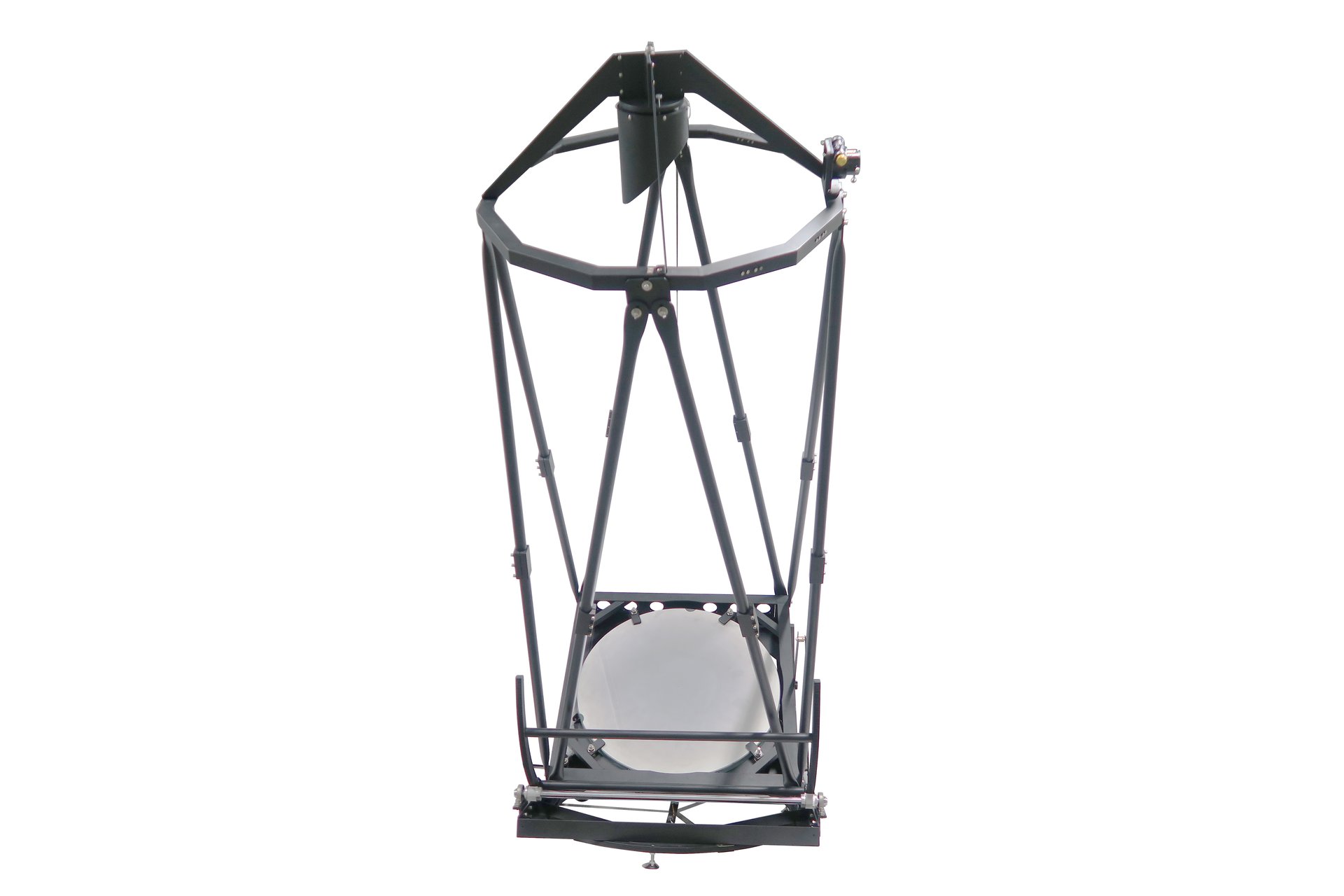

The ultimate observatory-class Dobsonian. Featuring our revolutionary Smart Finder with plate-solve
technology, OnStep GoTo controller, a massive 32" parabolic primary mirror, and precision-machined all-metal
construction. 16x the light grasp of an 8" reflector.
f/3.3: $25,000
USD
Deposit (50% of base system)
$12,500 USD
Smart GoTo
Solid Mirror
All Metal
Dual-Speed Focuser
Aperture
813mm (32")
Focal Ratio
f/3.3
Mirror
Solid
Weight
~330 lbs
Revolutionary Smart Finder
Our plate-solve-based Smart Finder takes GoTo to the next level. One press captures an image, plate
solves, and corrects pointing for pinpoint accuracy. Supports automated star alignment, automated "Star
Shows" like the Messier Marathon, EAA with live stacking, and advanced routing that reduces slewing time
by 30-50%.
Enhanced Optical Coatings
96% enhanced reflective coatings on both primary and secondary mirrors with precision-controlled
dielectric layers. Maximum light throughput for bright, contrast-rich images on the deepest sky targets.

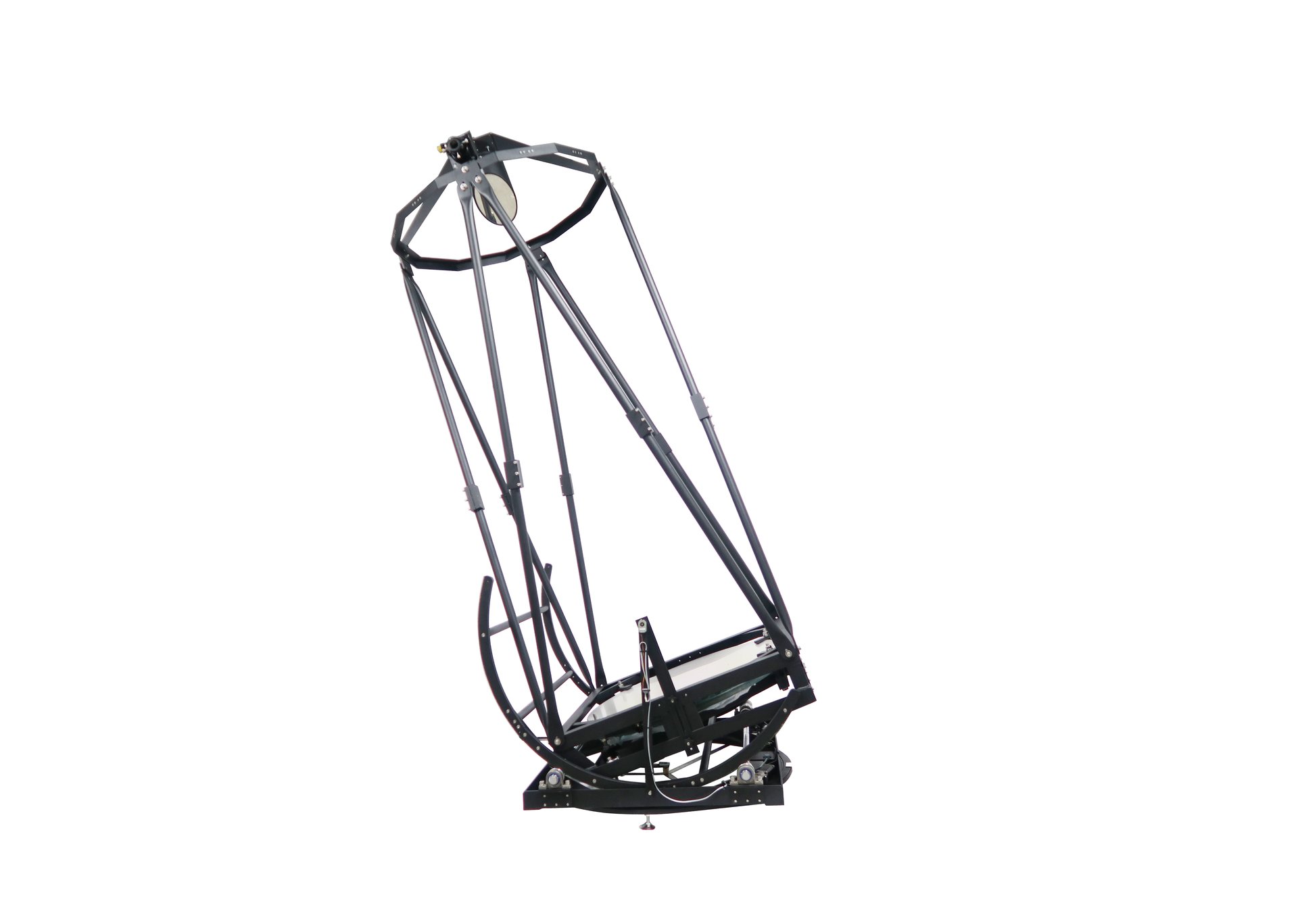

27-Point Mirror Support
Extensively modeled and optimized 27-point flotation system with sling and 90-degree pivoting lateral
supports. Three-point rod-end collimation is completely independent from lateral support, eliminating
potato-chip astigmatism. Housed in a real mirror box for safe protection and transportation.

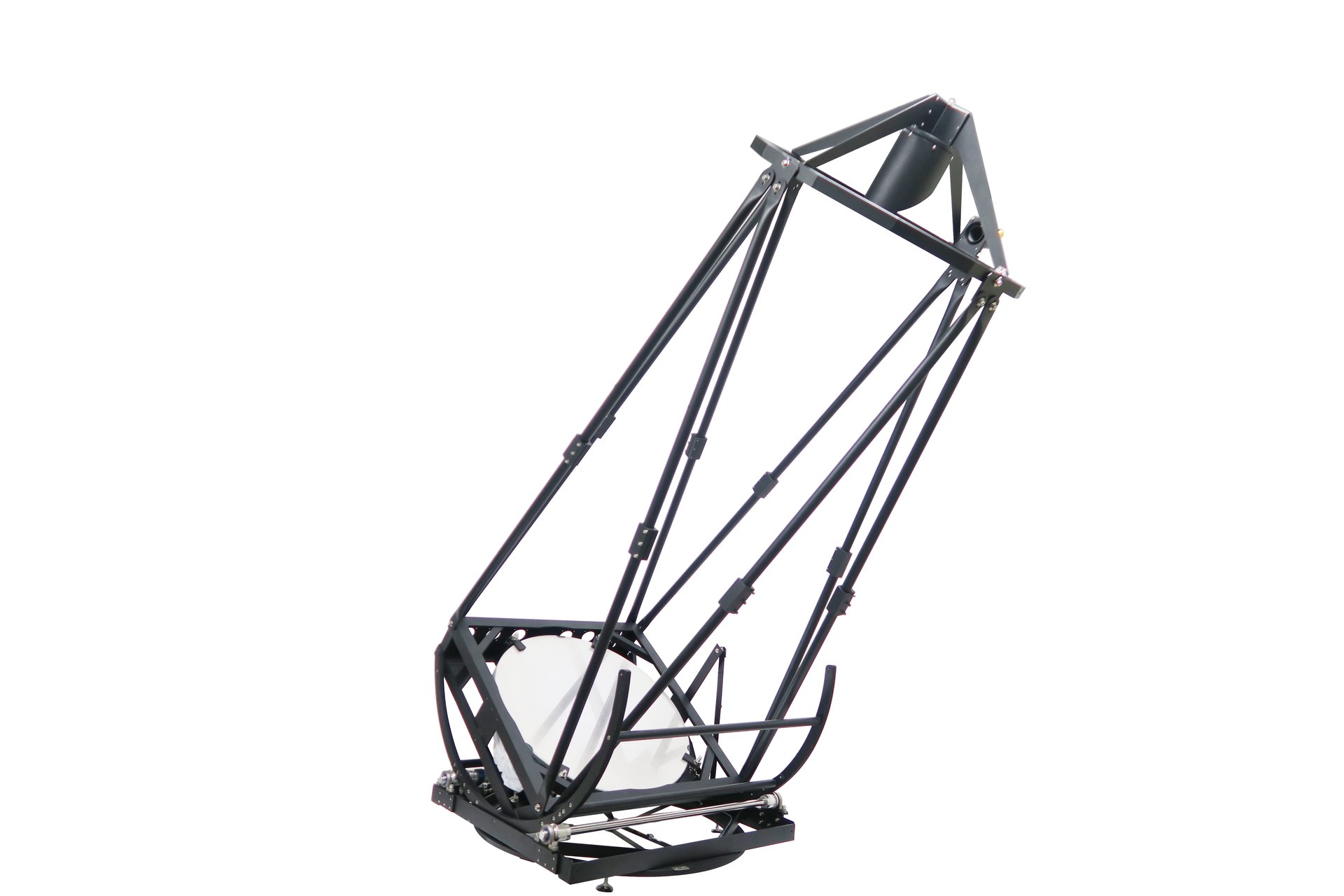

All Metal Construction
CNC-machined 6063-T6 aluminum alloy truss tubes, structural steel mirror cell, and aluminum alloy OTA
and mount structure. 8 rigid sectional truss tubes with an extremely strong folding ALT bearing.
Finished with environmentally friendly black powder coating.
OnStep GoTo Controller
State-of-the-art GoTo with built-in WiFi and Bluetooth. Works with SkySafari, Stellarium, ASCOM, INDI,
and more. Smart Hand Controller with ~30,000 objects. Telescope encoders for extra pointing accuracy,
real-time clock, park/unpark, sidereal/lunar/solar tracking, and spiral search.
Sling lateral support, push-pull brass knob collimation, real mirror box
Software Compatibility
INDI Drivers (CdC, KStars, Ekos), ASCOM drivers with IP and Serial support (LX200 protocol), direct WiFi
support for SkySafari and Stellarium, Bluetooth 4.2 for ASCOM connections, iOS and Android Virtual
Handpad Apps.
Smart Hand Controller
~30,000 objects database. Full initialization, configuration, alignment, and movement control. Advanced
1-9 star alignment (3 stars usually gives excellent results). Park/Unpark, sidereal/lunar/solar tracking
rates, and spiral search.
Precision & Speed
Telescope encoders for extra accuracy in pointing and tracking. Real-time clock module. Manual/guide
rates: 0.5x, 1x, 2x, 8x, 20x, 48x, 0.5 Max, Max (2 deg/s). Slewing rates: 48x, Max (default), 2x Max (4
deg/s).
Add these when ordering, or contact us at info@hubble-optics.com
View all 12 accessories
Smart Finder
$299
Advanced digital finder with precision plate-solve capability and much more. Perfect for the UL32sg
system. Free shipping with system.
Carbon Fiber Truss Tubes
$2,000
Elegant, stronger, and lighter Carbon Fiber Truss Tubes for the UL32sg.
Red Dot Finder Scope
$45
Light weight Red Dot Finder with brackets and dovetail. Simple, effective, and easy to adjust. Free
shipping with system.
8x50 Illuminated Finder Scope
$100
Top quality 50mm achromatic finder with dovetail bracket. Scale markings and adjustable red illumination.
+$25 shipping.
Truss Tube Grips
$7 each
0.9m cushioned vinyl foam grips — insulate, cushion vibration, and protect the truss tubes. Free shipping
with system.
Shroud
$200
Top quality Nylon/Lycra blend, larger size for the UL32sg. Blocks stray light for better contrast. Free
shipping with system.
Wheelbarrow Handle
$450
Stainless steel handles with two 6" pneumatic tires and ball bearings. Shipping included. Order with
system only.
Truss Tube Carry Bag
$60
Deluxe waterproof Nylon bag with draw-string cord. Free shipping with system.
5-Star Artificial Star
$22
Essential collimation tool. Free shipping when ordered with system.
Scope Storage Cover
$200
Larger size for UL32sg. Polyurethane-coated nylon — light reflecting, water and dust resistant. Full
protection in storage and in the field. Free shipping with system.
Mirror Cover
$100
Larger size for UL32sg. Strong plastic mirror cover. Free shipping with system.
Light Baffle
$100
Larger size for UL32sg. Reduces stray light for improved contrast. Free shipping with system.
There's a 50% deposit for the base system, and the full payment for the optional accessories at the order time.
The rest including shipping will be paid before the delivery (about 90 days after the deposit) via a PayPal
invoice or wire transfer.
Please note that the 90 days delivery is the estimated production lead time which does not include shipping
transit time.

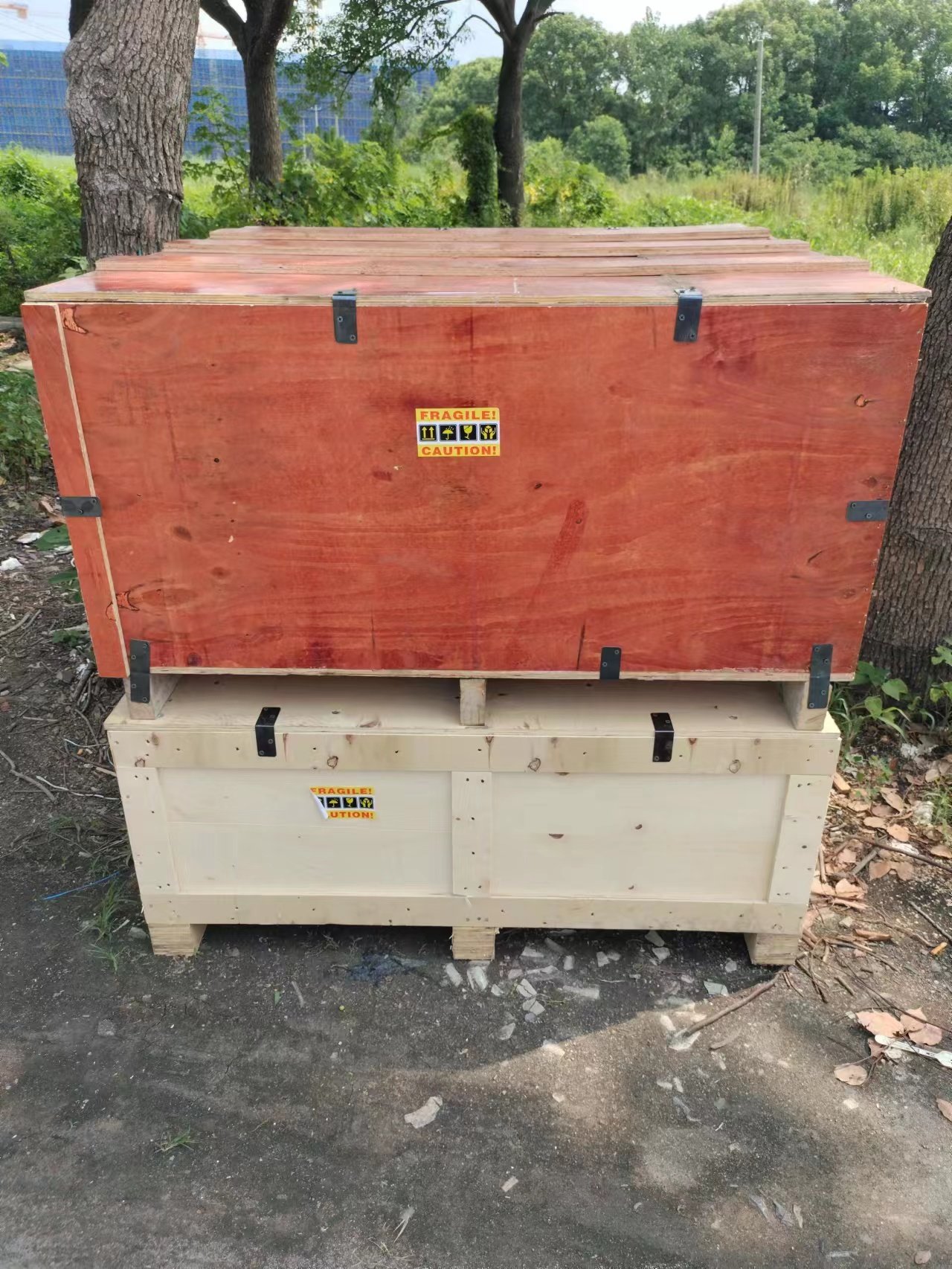

UL32sg will be shipped in 2 wooden boxes: the scope structure and the primary mirror.
